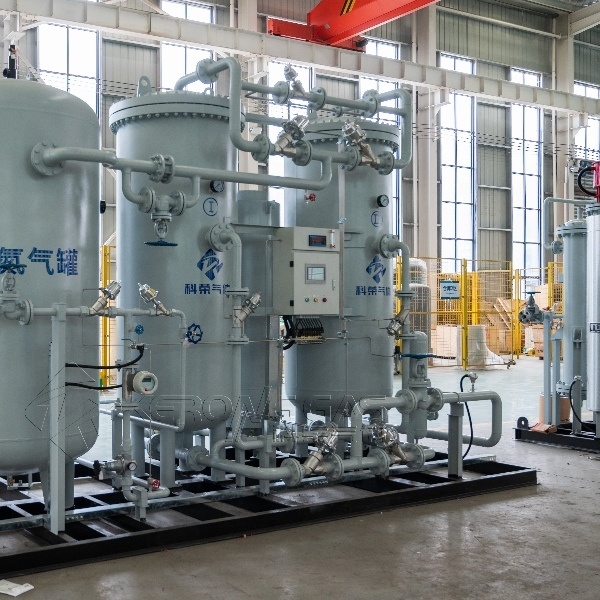

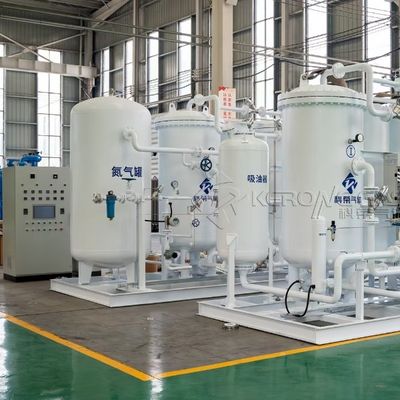

Automatic Safety Shutdown Explosive Proof Nitrogen Air Separation Unit
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | KERONG GAS |
| Сертификация: | ISO9001, CE, ASME |
| Номер модели: | Крн |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | Деревянная коробка |
| Время доставки: | 8 недель |
| Условия оплаты: | L/C, T/T, Western Union, Moneygram |
| Поставка способности: | 1000 шт в год |
|
Подробная информация |
|||
| Имя: | Устройство для разделения азота на воздух | Чистота: | 90%~ 99,9999% |
|---|---|---|---|
| Точка росы: | -45 ℃ или больше | Материал: | Нержавеющая сталь или углеродистая сталь |
| Емкость: | 5nm3/hr ~ 5500NM3/HR | Давление: | Регулируемый |
| Выделить: | explosion proof nitrogen generator,PSA nitrogen air separation unit,automatic shutdown nitrogen generator |
||
Характер продукции
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |
Our Automatic Safety Shutdown Explosive Proof Nitrogen Air Separation Unit is engineered for hazardous environments requiring high-purity nitrogen (up to 99.99%) with maximum safety. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane technology, it separates nitrogen from compressed air, providing continuous on-site supply for chemical, petrochemical, or industrial applications. The system features explosion-proof construction and an automatic safety shutdown mechanism, protecting personnel and equipment in case of abnormal conditions. Fully automated, energy-efficient, and low-maintenance, it integrates air compression, drying, filtration, and control units in a robust design. This unit ensures reliable, safe, and compliant nitrogen generation in high-risk environments.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
